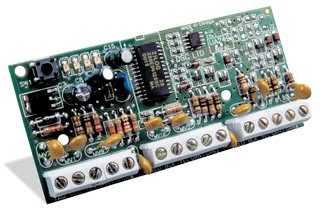

22PC5380 DSC Multiple Wireless Receiver Module
Code 22PC5380
Pricing is shown to logged-in customers.
The DSC PC5320 (often referenced or stocked as part number 22PC5380 is a Multiple Wireless Receiver Module engineered for DSC PowerSeries security systems.
The DSC PC5320 (often referenced or stocked as part number 22PC5380 is a Multiple Wireless Receiver Module engineered for DSC PowerSeries security systems.
Key Specifications & Features
Compatibility: Works with DSC PowerSeries control panels including the PC1616, PC1832, and PC1864.
Receiver Capacity: Allows you to connect up to 4 separate wireless receivers to a single control panel to expand wireless coverage and eliminate dead zones in large facilities.
Frequency Support: Multi-frequency support for a combination of 900 MHz and 433 MHz receivers.
System View: The control panel perceives all connected receivers through the PC5320 as a single unified receiver, meaning programming is mirrored identically across all linked units.
Wiring Overview
Common Terminals: RED, BLK, and YEL terminals are wired in common to all connected receivers.
Green Bus Terminals: The GRN wire from each individual receiver connects separately to GRN1, GRN2, GRN3, and GRN4 on the module.
Primary Requirement: At least one wireless receiver must be connected to GRN1 for the module to operate properly.
